Product Details

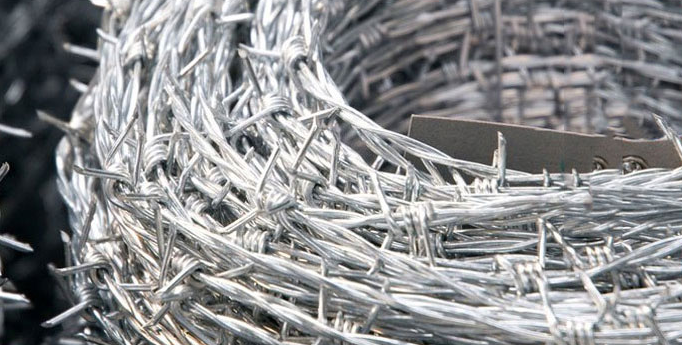

1. Barbed Wire Material
High quality low carbon steel wire, two strands four points
Electric Galvanized Barbed Wire
Hot Dipped Galvanized Barbed Wire/
PVC Coated Barbed Wire

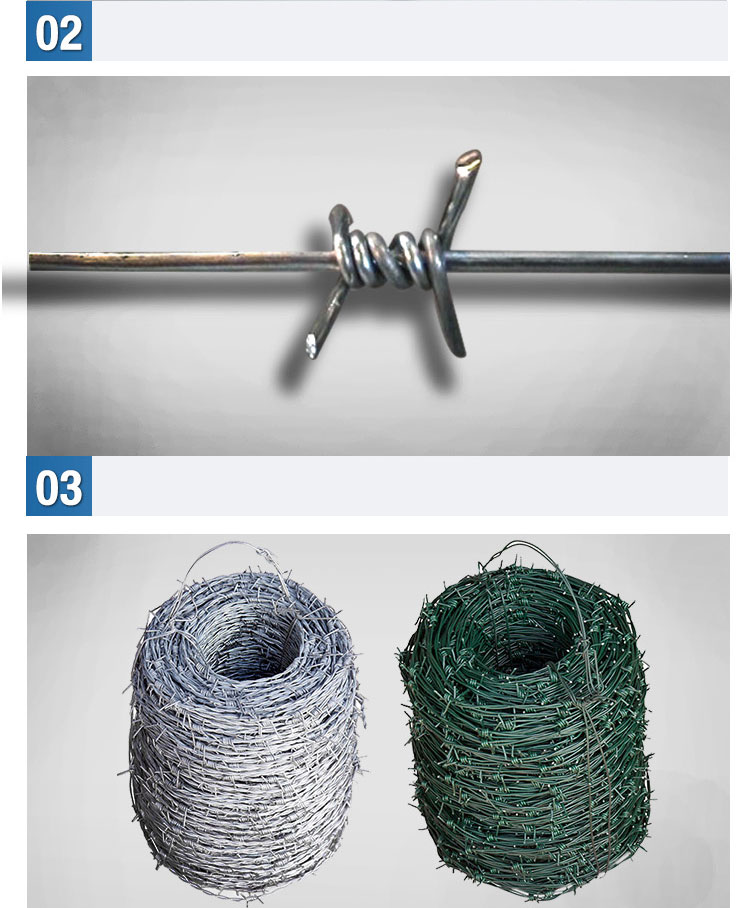

2. Barbed Wire Twisted Style
Double twisted Barbed wire
Traditional Twisted Barbed Wire
Single Twisted Barbed Wire

3. Barbed Wire Specifications
Line Wire Dia: 1.6mm-3.0mm
Barb Wire Dia: 1.6mm-2.8mm
Barb Spacing: 3-6”
Roll Weight: 5kg-50kg
Packing: In bulk, wood hanlde packing, iron handle packing, pallet packing.

Type	Wire Gauge (SWG)		Barb Distance (cm)	Barb Length (cm)
Electric Galvanized Barbed Wire; Hot-dip zinc plating barbed wire	10# x 12#		7.5-15	1.5-3
	12# x 12#
	12# x 14#
	14# x 14#
	14# x 16#
	16# x 16#
	16# x 18#
PVC coated barbed wire; PE barbed wire	Before coating	After coating	7.5-15	1.5-3
	1.0mm-3.5mm	1.4mm-4.0mm
	BWG11#-20#	BWG8#-17#
	SWG11#-20#	SWG8#-17#
PVC PE coating thickness: 0.4mm-0.6mm; different colors or length are available at customers request.

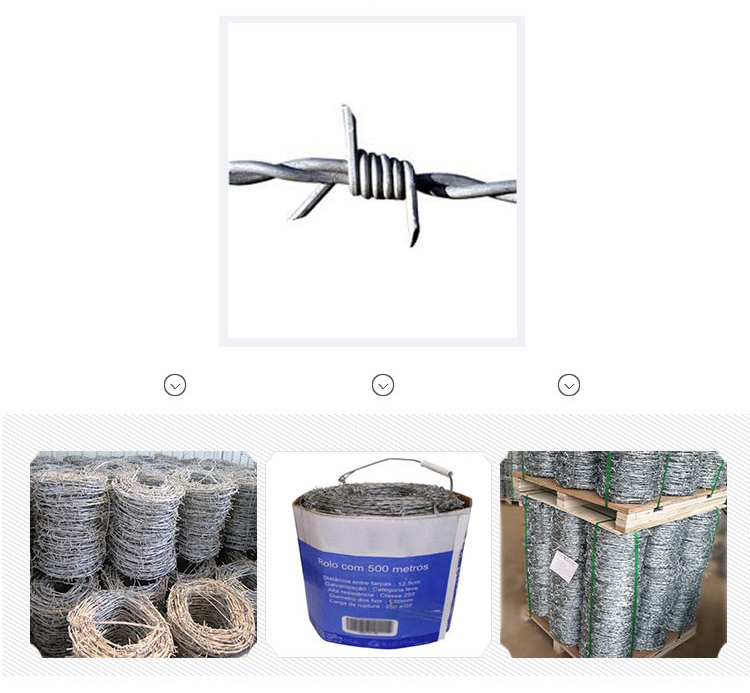

Product Packing

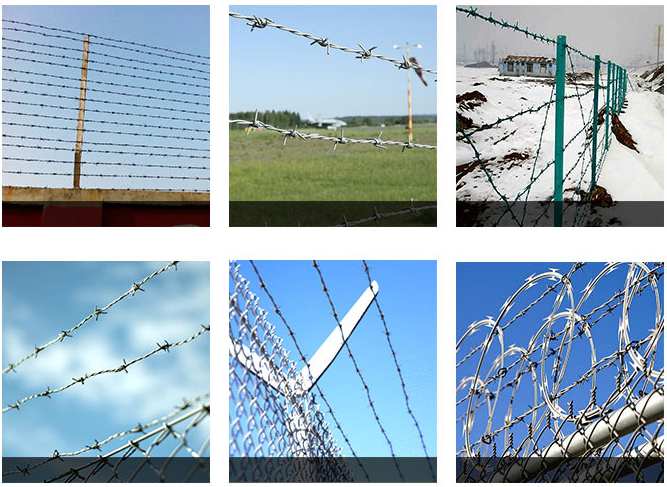

Product Use

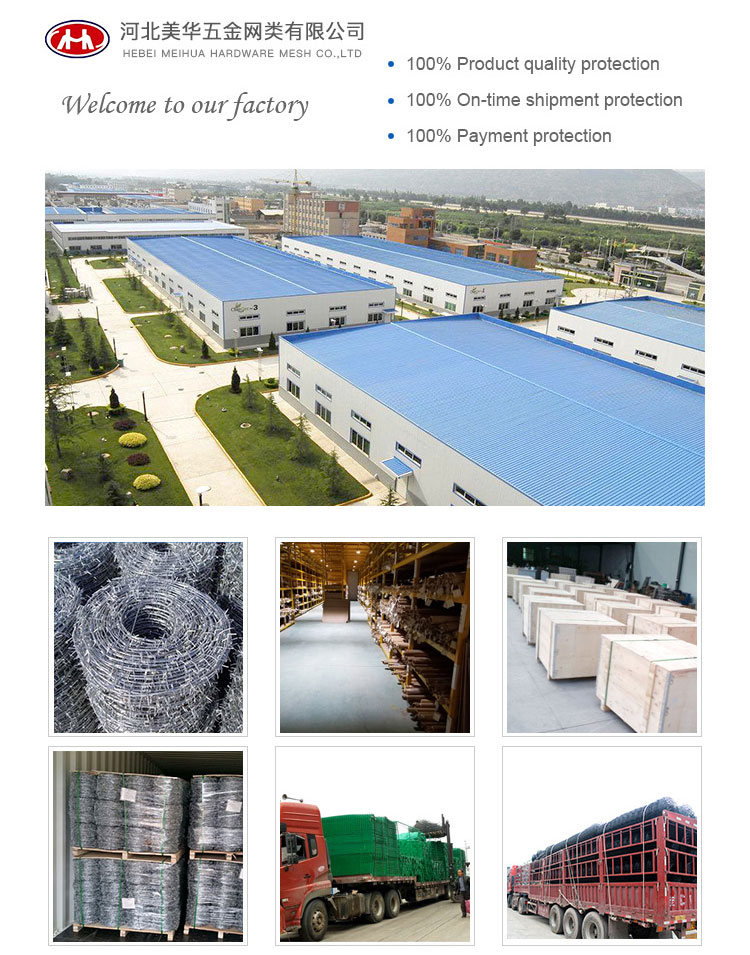

Factory Show

Our Certficate
