Product Details
1. Barbed Wire Material
High quality low carbon steel wire, two strands four points
Electric Galvanized Barbed Wire
Hot Dipped Galvanized Barbed Wire/
PVC Coated Barbed Wire2. Barbed Wire Twisted Style
Double twisted Barbed wire
Traditional Twisted Barbed Wire
Single Twisted Barbed Wire3. Barbed Wire Specifications
Line Wire Dia: 1.6mm-3.0mm
Barb Wire Dia: 1.6mm-2.8mm
Barb Spacing: 3-6”
Roll Weight: 5kg-50kg
Packing: In bulk, wood hanlde packing, iron handle packing, pallet packing.
1. Barbed Wire Material
High quality low carbon steel wire, two strands four points
Electric Galvanized Barbed Wire
Hot Dipped Galvanized Barbed Wire/
PVC Coated Barbed Wire2. Barbed Wire Twisted Style
Double twisted Barbed wire
Traditional Twisted Barbed Wire
Single Twisted Barbed Wire3. Barbed Wire Specifications
Line Wire Dia: 1.6mm-3.0mm
Barb Wire Dia: 1.6mm-2.8mm
Barb Spacing: 3-6”
Roll Weight: 5kg-50kg
Packing: In bulk, wood hanlde packing, iron handle packing, pallet packing.
| Type | Wire Gauge (SWG) | Barb Distance (cm) | Barb Length (cm) | |
| Electric Galvanized Barbed Wire; Hot-dip zinc plating barbed wire |
10# x 12# | 7.5-15 | 1.5-3 | |
| 12# x 12# | ||||
| 12# x 14# | ||||
| 14# x 14# | ||||
| 14# x 16# | ||||
| 16# x 16# | ||||
| 16# x 18# | ||||
| PVC coated barbed wire; PE barbed wire | Before coating | After coating | 7.5-15 | 1.5-3 |
| 1.0mm-3.5mm | 1.4mm-4.0mm | |||
| BWG11#-20# | BWG8#-17# | |||
| SWG11#-20# | SWG8#-17# | |||
| PVC PE coating thickness: 0.4mm-0.6mm; different colors or length are available at customers request. | ||||

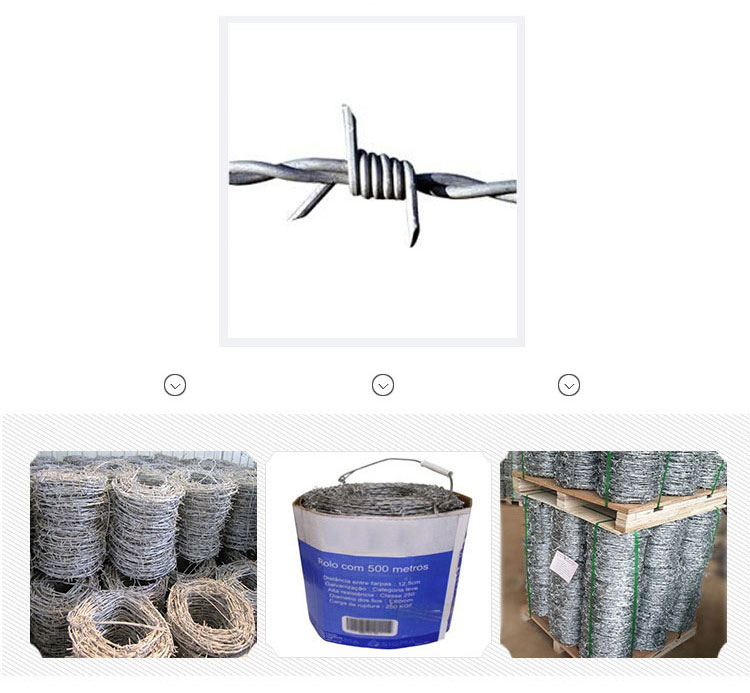

Product Packing

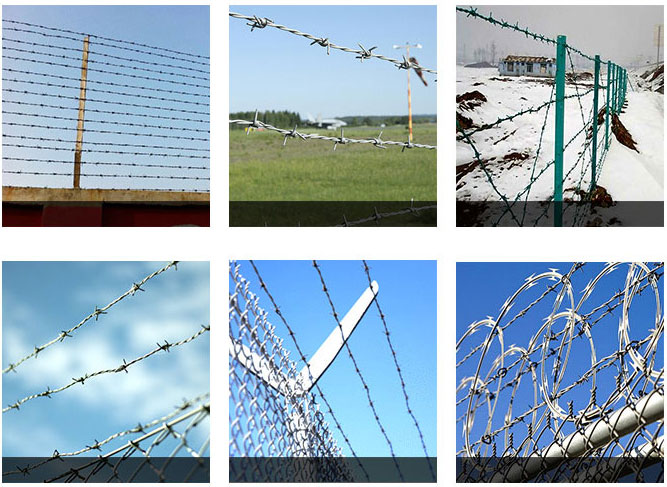

Product Use

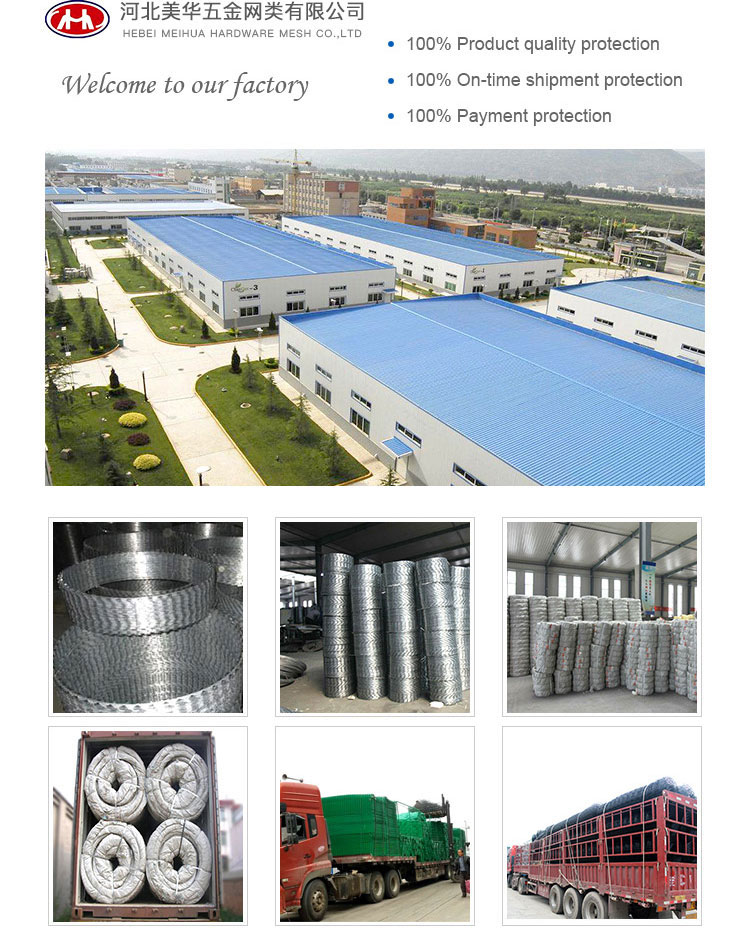

Factory Show
