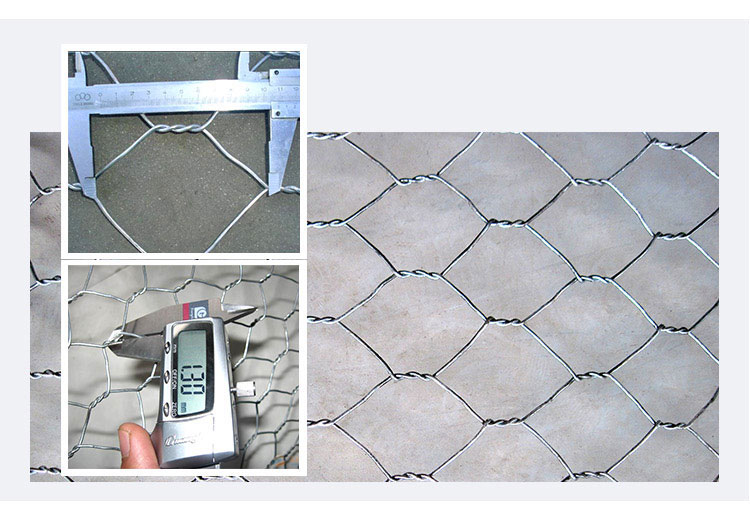

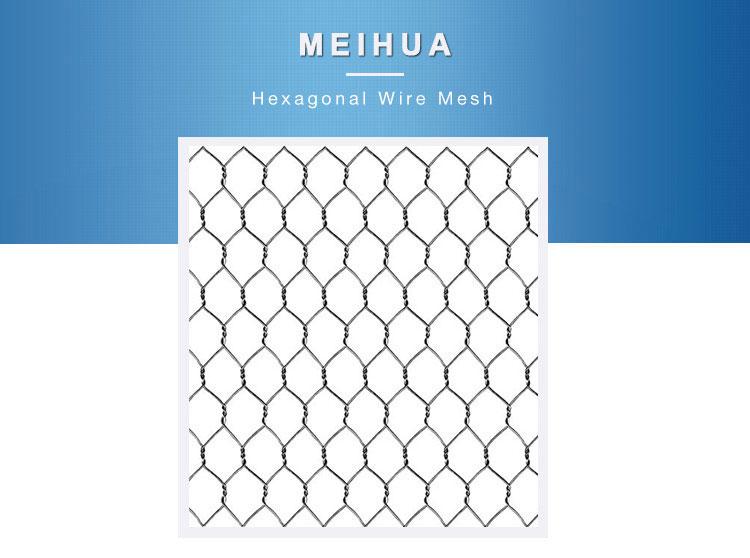

Hexagonal Wire Mesh

Hexagonal Wire Mesh

Wire Gauge: 0.5m-2mm
Hole Shape: Hexagonal
Material: Low-Carbon Iron Wire,

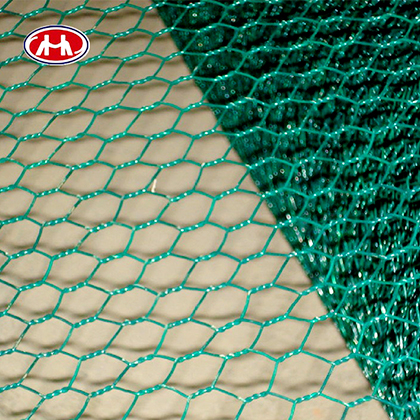

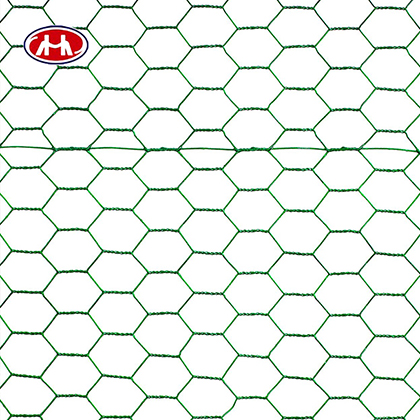

Surface: Galvanized, pvc

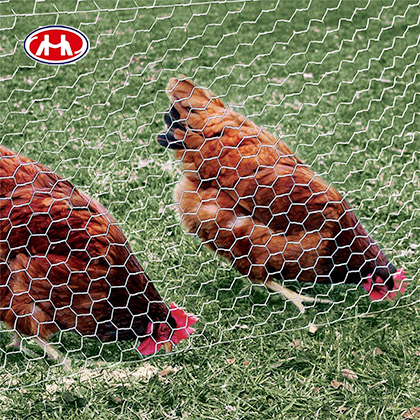

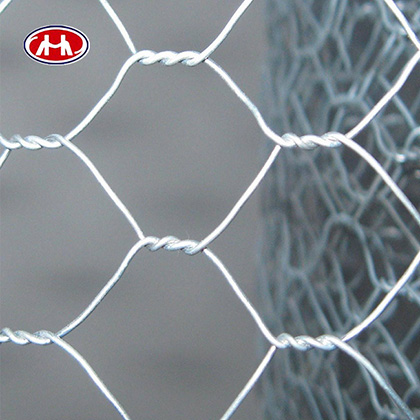

Product Description: Hexagonal wire mesh has many names which are called from usage, like chicken mesh, bird net, rabbit net, etc.

Product Details

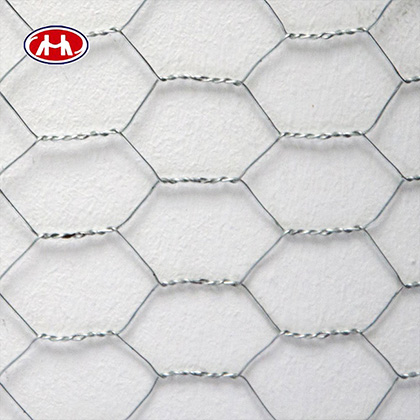

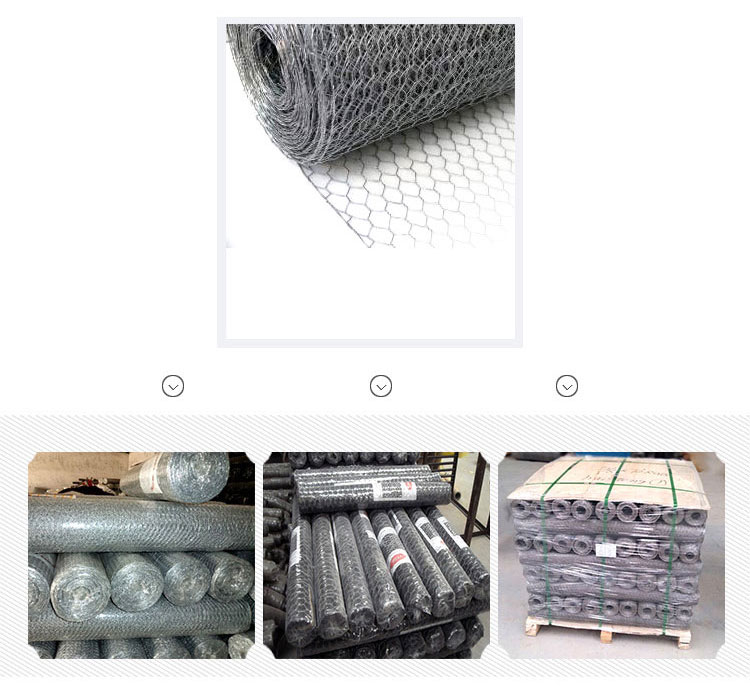

Galvanized Hex. Wire Netting In Normal Twist(In 30m roll,width of 0.5m—2.0m)
Mesh		Wire Gauge (BWG)
Inch	mm	Wire Gauge (BWG)
3/8″	10mm	27,26,25,24,23,22,21
1/2″	13mm	25,24,23,22,21,20
5/8″	16mm	27,26,25,24,23,22
3/4″	20mm	25,24,23,22,21,20,19
1″	25mm	25,24,23,22,21,20,19,18
1-1/4″	32mm	22,21,20,19,18
1-1/2″	40mm	22,21,20,19,18,17
2″	50mm	22,21,20,19,18,17,16,15,14
3″	75mm	21,20,19,18,17,16,15,14
4″	100mm	17,16,15,14

Galvanized Hex. Wire Netting In Reverse Twist(In 30m roll, width of 0.5m—2.0m)
Mesh			Wire Gauge		Reinforcement
Inch	mm		BWG		Widths (ft)	Strand
1″	25mm		22,21,20,18		2′	1
1-1/4″	32mm		22,21,20,18		3′	2
1-1/2″	40mm		20,19,18		4′	3
2″	50mm		20,19,18		5′	4
3″	75mm		20,19,18		6′	5
Mesh				Wire Gauge
Inch		mm
1/2″		13mm		0.9mm,1.0mm
1″		25mm		1.0mm,1.2mm,1.4mm
1-1/2″		40mm		1.0mm,1.2mm,1.4mm,1.6mm
2″		50mm		1.0mm,1.2mm,1.4mm,1.6mm
