FLC-500 Shaker ScreenProduct Description
500 Series screens, available in Pyramid、Pyramid Plus and PWP panels are used on all FLC 500 series shale shakers,including the FLC-503/504,FLC-514/514 shaker.
The FLC 500’s innovative single-side tensioning system reduces screen panel replacement time to less than one minute per panel.This faster, easier and more reliable screen panel tensioning is provided by tensioning fingers and two Quick-Lok 1/2-turn tensioning bolts on each screen panel.
We can supply the replacement for 500 series PWP and PMD screens, our screen.
500 Series screens, available in Pyramid、Pyramid Plus and PWP panels are used on all FLC 500 series shale shakers,including the FLC-503/504,FLC-514/514 shaker.
The FLC 500’s innovative single-side tensioning system reduces screen panel replacement time to less than one minute per panel.This faster, easier and more reliable screen panel tensioning is provided by tensioning fingers and two Quick-Lok 1/2-turn tensioning bolts on each screen panel.
We can supply the replacement for 500 series PWP and PMD screens, our screen.
Product Specification
| FLC —500 Series Shaker Screen | |
| Mesh | API 20 — API500 |
| Dimension | 1050 × 695mm |
| Weight | PWP: 6.0kg |
| PMD: 7.5kg | |
| Screen Type | Hook-strip Screens |
| Screen Layer | 2 or 3 Layer |
| Wire Mesh Material | SS304、SS316、SS316L |
| Frame Material | Carbon Steel |
| Bonding | Epoxy Powder Coating |

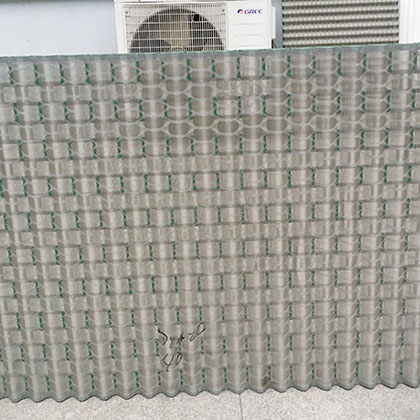

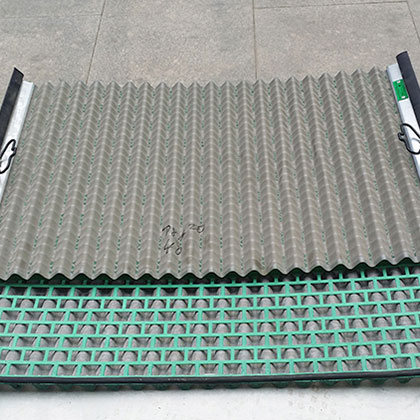

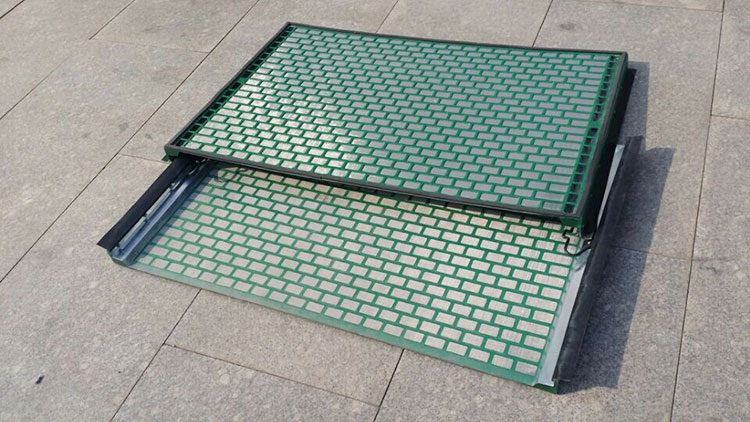

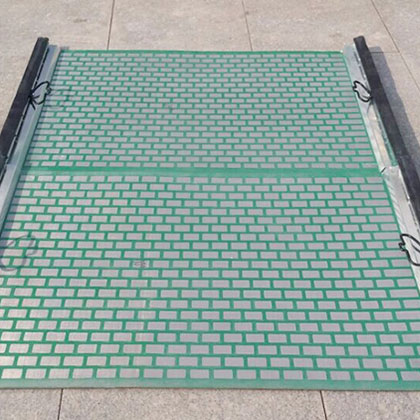

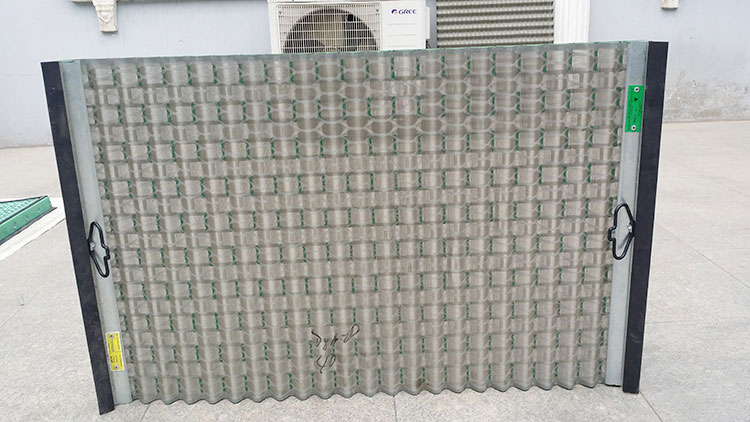

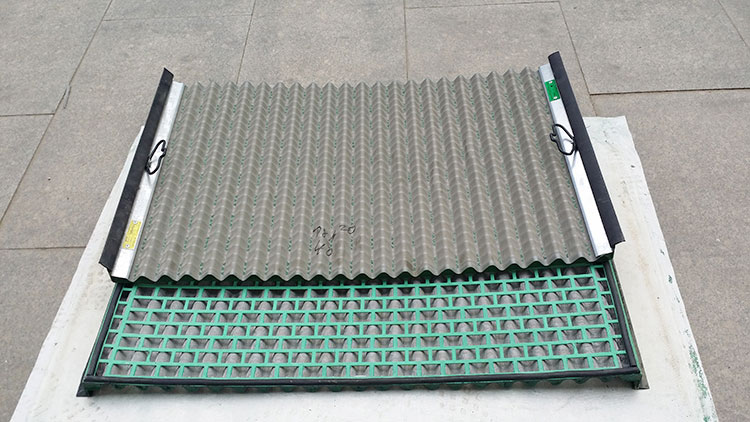

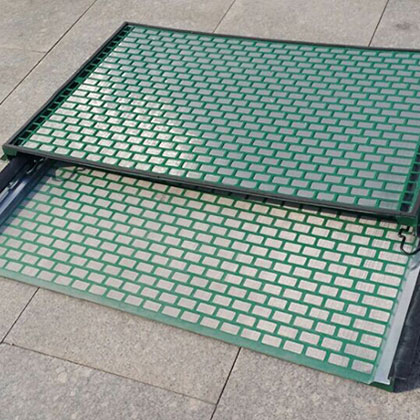

Product Display
