Product Details
| Plain Weave | |||
| Mesh | Wire Dia. (mm) | Opening (mm) | Material (AISI) |
| 7mesh x 7mesh | 1.00 | 2.63 | 304 or 316 |
| 10mesh x 10mesh | 0.60 | 1.94 | 304 or 316 |
| 12mesh x 12mesh | 0.50 | 1.62 | 304 or 316 |
| 16mesh x 16mesh | 0.40 | 1.19 | 304 or 316 |
| 16mesh x 16mesh | 0.35 | 1.24 | 304 or 316 |
| 18mesh x 18mesh | 0.35 | 1.06 | 304 or 316 |
| 20mesh x 20mesh | 0.40 | 0.87 | 304 or 316 |
| 24mesh x 24mesh | 0.26 | 0.80 | 304 or 316 |
| 30mesh x 30mesh | 0.30 | 0.55 | 304 or 316 |
| 35mesh x 35mesh | 0.17 | 0.56 | 304 or 316 |
| 40mesh x 40mesh | 0.23 | 0.40 | 304 or 316 |
| 50mesh x 50mesh | 0.20 | 0.31 | 304 or 316 |
| 60mesh x 60mesh | 0.15 | 0.27 | 304 or 316 |
| 70mesh x 70mesh | 0.12 | 0.24 | 304 or 316 |
| 80mesh x 80mesh | 0.13 | 0.19 | 304 or 316 |
| 90mesh x 90mesh | 0.12 | 0.16 | 304 or 316 |
| 100mesh x 100mesh | 0.10 | 0.15 | 304 or 316 |
| 120mesh x 120mesh | 0.09 | 0.12 | 304 or 316 |
| 150mesh x 150mesh | 0.063 | 0.11 | 304 or 316 |
| 180mesh x 180mesh | 0.053 | 0.09 | 304 or 316 |
| 200mesh x 200mesh | 0.053 | 0.07 | 304 or 316 |
| Twill Weave | |||
| Mesh | Wire Dia. (mm) | Opening (mm) | Material (AISI) |
| 250mesh x 250mesh | 0.040 | 0.063 | 316 |
| 300mesh x 300mesh | 0.040 | 0.044 | 316 |
| 325mesh x 325mesh | 0.035 | 0.043 | 316L |
| 350mesh x 350mesh | 0.030 | 0.042 | 316L |
| 400mesh x 400mesh | 0.030 | 0.033 | 316L |
| 450mesh x 450mesh | 0.028 | 0.028 | 316L |
| 500mesh x 500mesh | 0.025 | 0.026 | 316L |

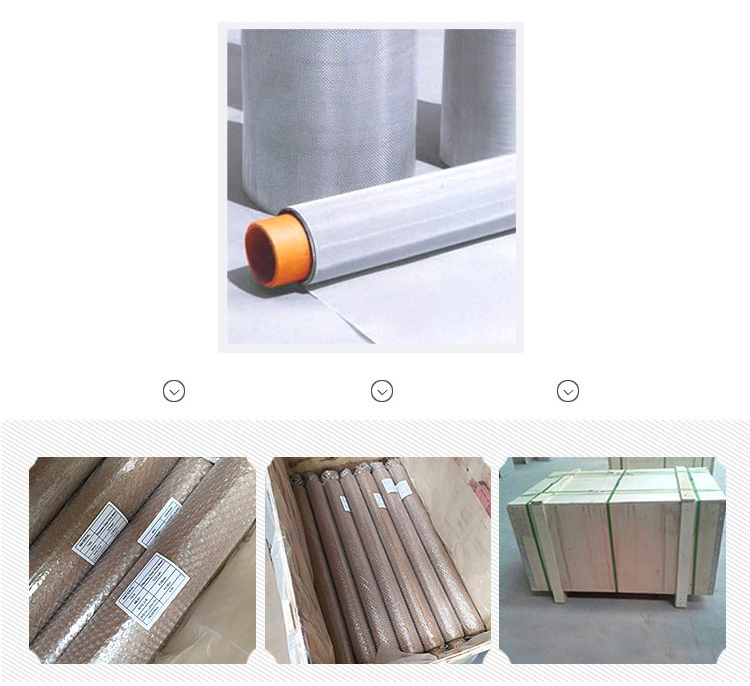

Product Packing

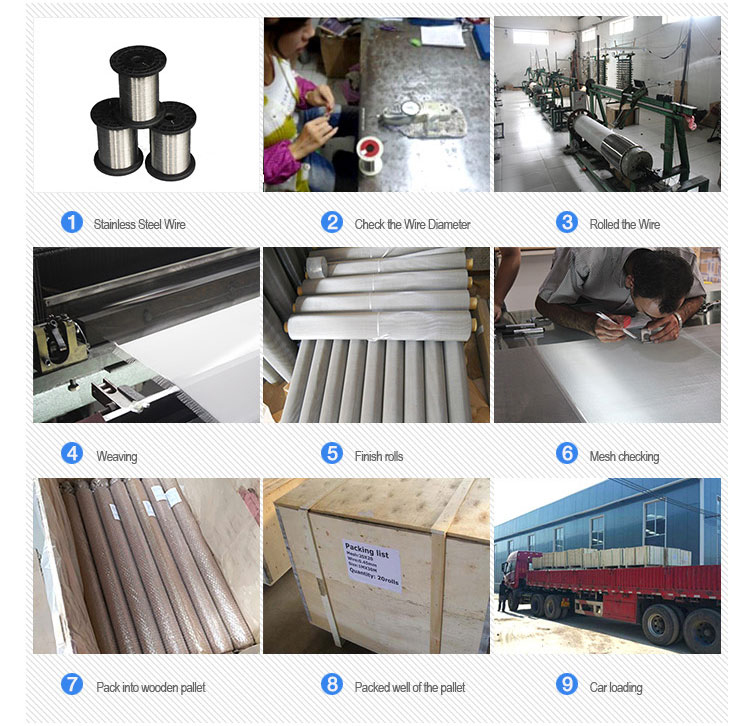

Production Process
Factory Show
Our Certificate
